Mesh Comparison Chart
CARR Australia provides a range of quality printable mesh textiles for grand format printing. This page compares these various mesh types available: Tight PVC Mesh, Open PVC Mesh, Shade Cloth, Polyester Mesh.

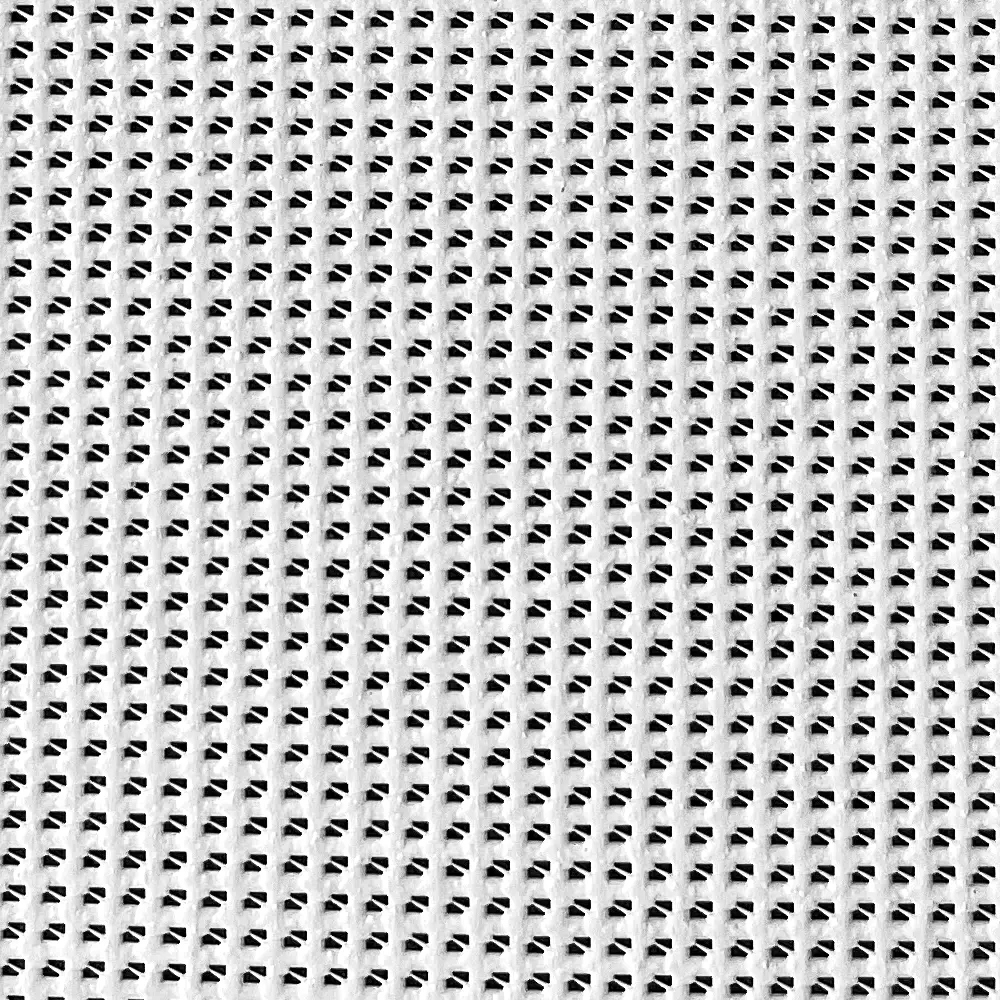

Tight PVC Mesh
- Print Compatibility: UV, Latex & Solvent
- Longevity: 4/5
- Visual Impact: 4/5
Details
- 280gsm PVC Mesh
- 12×12 Knit Construction
- Tight Construction
- Great Image Quality
- Longer Outdoor Exposure
- Hem & Eyelets Required
- NB. Also Available Pre-hemmed

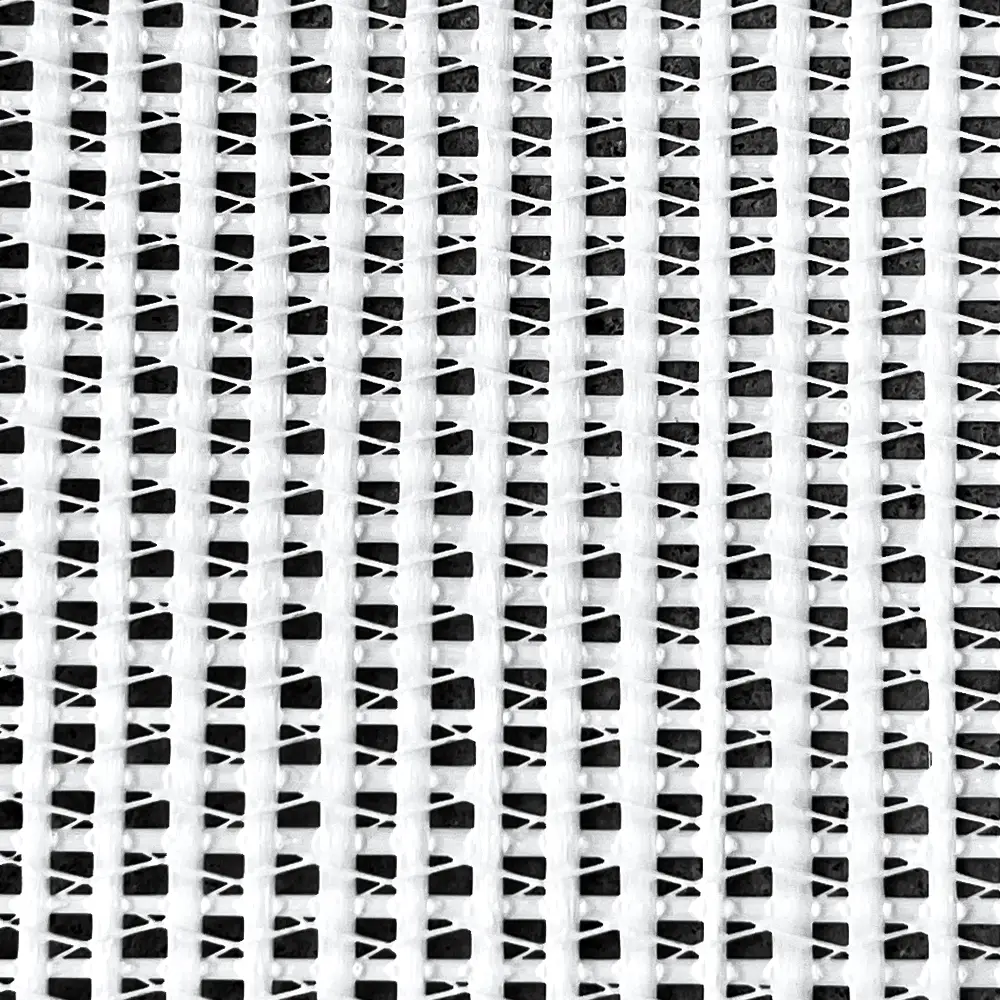

Open PVC Mesh
- Print Compatibility: UV, Latex & Solvent
- Longevity: 3/5
- Visual Impact: 3/5
Details
- 200gsm PVC Mesh
- 9×9 Knit Construction
- More Open Construction, Better Air Permeability
- Good Image Quality
- Mid-term Outdoor Exposure
- Hem & Eyelets Required
- NB. Also Available Pre-hemmed
Shade Cloth
- Print Compatibility: Solvent
- Longevity: 3/5
- Visual Impact: 3/5
Details
- 180gsm HDPE Mesh
- Good Image Quality
- True Solvent Printable
- Mid-term Outdoor Exposure
- No Post Print Finishing Required – Button Hole Edging

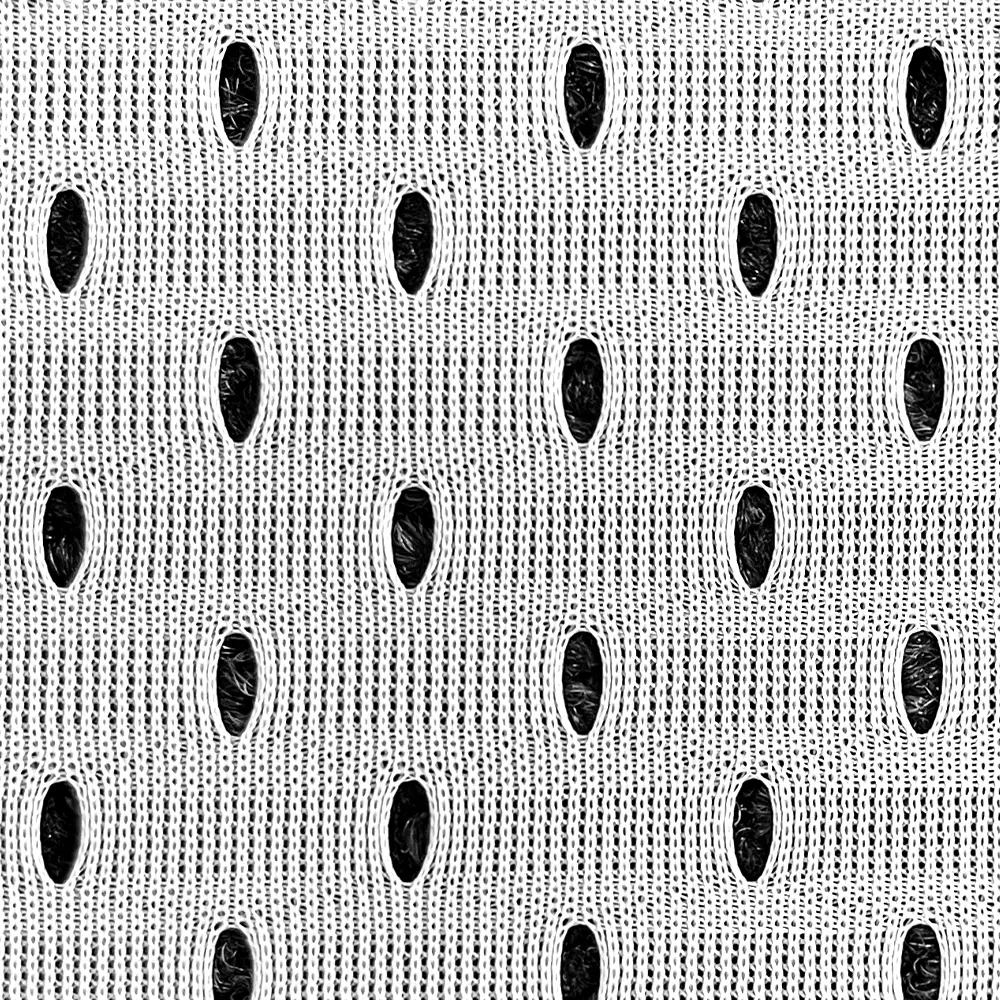

Polyester Mesh
- Print Compatibility: Best results – Direct & Transfer Sublimation
- NB. Other inks will adhere but may be less vibrant
- Longevity: 1/5
- Visual Impact: 5/5
Details
- 115gsm Polyester Mesh
- Great Image Quality
- Short Term Outdoor Exposure
- Hem & Eyelets Required
- Dye Sub for Best Results
