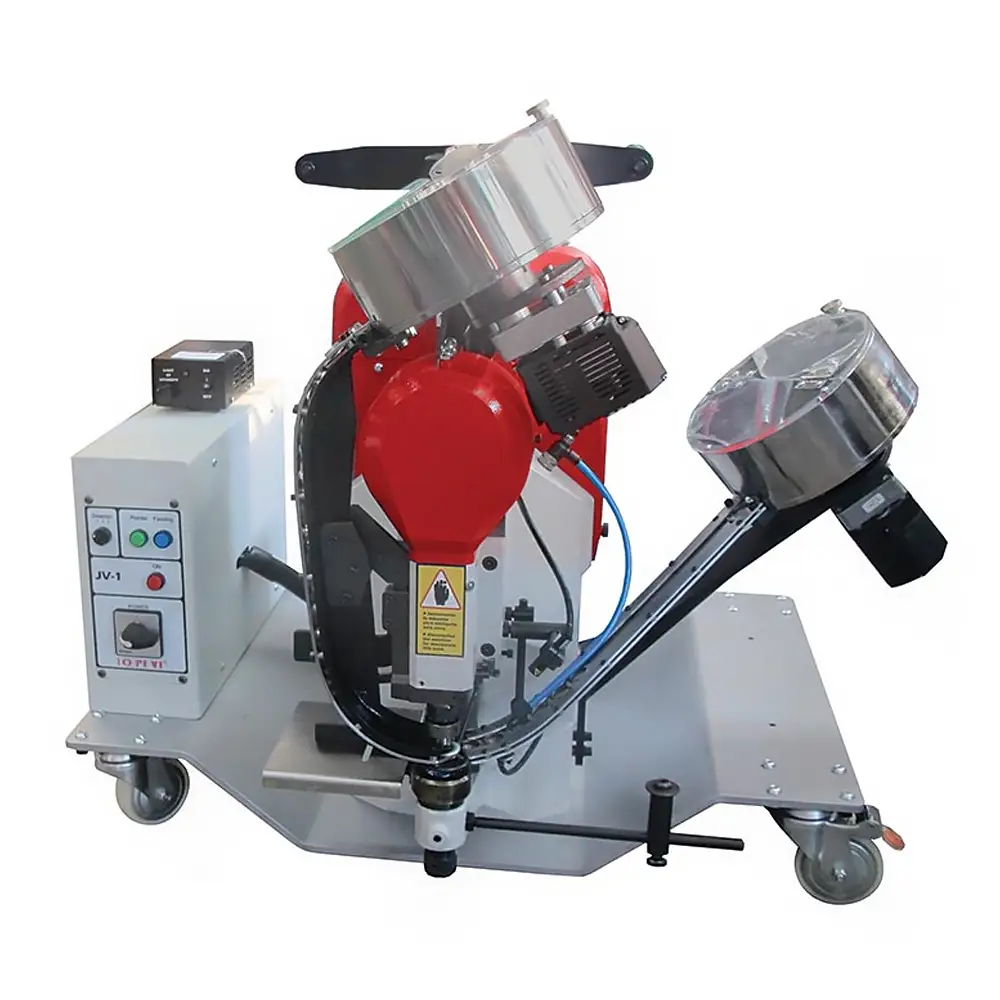

Model AE60
Automatic Electric Grommet Setting Machine
Fully automatic feed (grommets and washers) electric machine with laser pointer, and washer detector mechanism that prevents the machine from setting a grommet without a washer.
- Feeds grommet and washer, cuts hole and makes setting in one cycle
- Extremely fast cycle time – 75 grommets per minute
- Grommet sizes up to #5 Stainless Steel
- Electronic washer detector and slide mechanism for perfect washer placement
- Positioning device for consistent spacing of settings
- Safe and easy to use
- Laser pointer standard
- Available on a table or trolley mount
Technical Specifications
| Feature | Imperial | Metric |
|---|---|---|
| Grommet size (hole diameter) – SS | 1/4″ – 11/16″ | 6 mm – 18 mm |
| Grommet size (hole diameter) – Brass | 1/4″ – 13/16″ | 6 mm – 20 mm |
| Throat depth | 2 – 3/8″ | 60 mm |
| Machine weight (Bench model) | 304 lbs | 138 kgs |
| Machine size on bench (DxWxH) | 28″ x 36″ x 59″ | 70 cm x 90 cm x 149 cm |
| Cycles per minute | 75 | |
| Electrical devices | Laser pointer (Included) | |
AE60 Introduction
AE60 Bottom Die Adjustment
