Keder Edge
Supplying customers from the wide format print sector as well as fabricators of outdoor products, we have a Keder product for every application. CARRFLEX® Keder and CARRFLEX® Keder Core allows fabric panels to connect to a frame, by sliding easily and effortlessly into an aluminium rail.

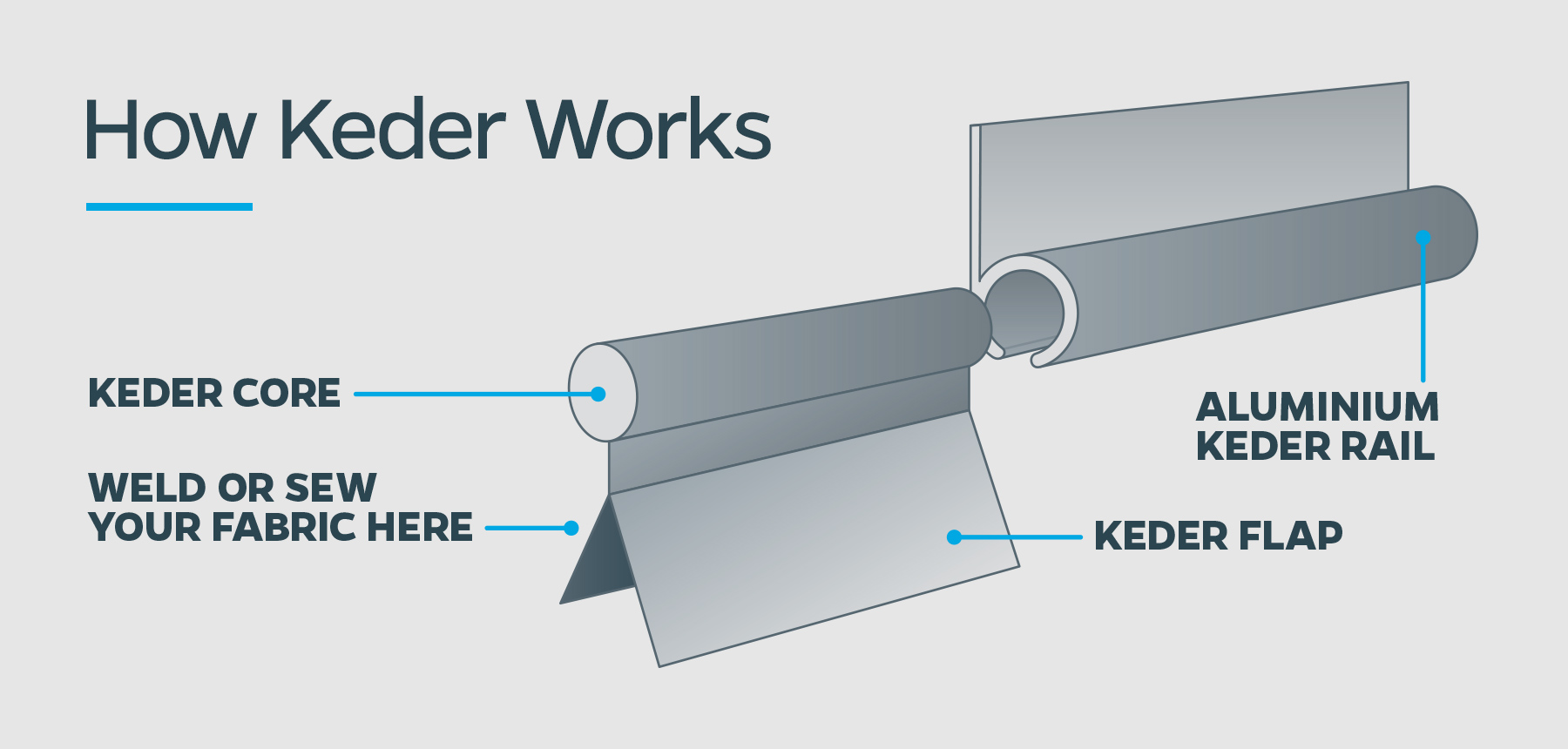

What is Keder?
Simply put, Keder is used to attach a fabric panel to a solid structure. The fabric panel (usually PVC) will be welded or stitched to the Keder flap, while the Keder core slides into an aluminium extrusion secured to the solid structure.
Keder consists of two parts: an inner core and an outer fabric. The core is commonly made from extruded PVC, which is then wrapped and welded in a coated fabric. Generally, this fabric is woven Polyester with PVC knife coating on one side, with the exposed fibres on the outside allowing the Keder to easily slide into the aluminium track.
Using this ingenious invention, fabric installations can happen faster, are more durable and it creates a continuous waterproof connection for roof membranes, curtains and sidewalls between the fabric and the frame.
The method for welding Keder to fabric depends on the style of Keder that is being used.
Double Flap Keder is generally welded using a high-frequency welder due the fact that three layers of fabric are being welded at the same time.
Single Flap Keder can be welded using wedge welders or hot air welders, requiring only a simple overlap weld.
Keder can also be sewn to fabric.
CARRFLEX® Keder and Keder Core Range
Our stocked Keder comes in a range from 4mm up to 13mm diameter, single or double flapped. Our standard fabric colours are black and white.
Our PVC Keder Core ranges from 3mm to 12mm in diameter. With the fabricator using their own fabric this gives them a similar range in size to using our ex-stock Keder range. It can also be used as Bolt Rope and sewn along the edges of sails to reinforce them or to allow the sail to be fixed into a groove on the boom or mast.
Keder Extruded Core – Clear
- 3mm Dia, 500m Spool
- 6mm Dia, 430m Spool
- 7mm Dia, 310m Spool
- 10mm Dia, 150m Spool
- 12mm Dia, 105m Spool
Custom sizes available on request.
Standard Keder Fabric Colours
- Black
- Beige
- White
- Blockout White
Custom colours available on request.
Custom Keder Products Available *
Need something customised? We are happy to help! If you have a special project requiring a unique style of Keder, our team in Australia and New Zealand can work with you to design and create the product to meet your needs.
* Please note that minimum order quantities will be required. Contact us for details.
Examples of Custom Capabilities
- Core Size
- Profile
- Material (PVC-free)
- Fabric Colour
- Weight
- Weave
- Flap Size
- Coating Colour (Blockout)
- Coated Both Sides
