Stainless Steel Grommets

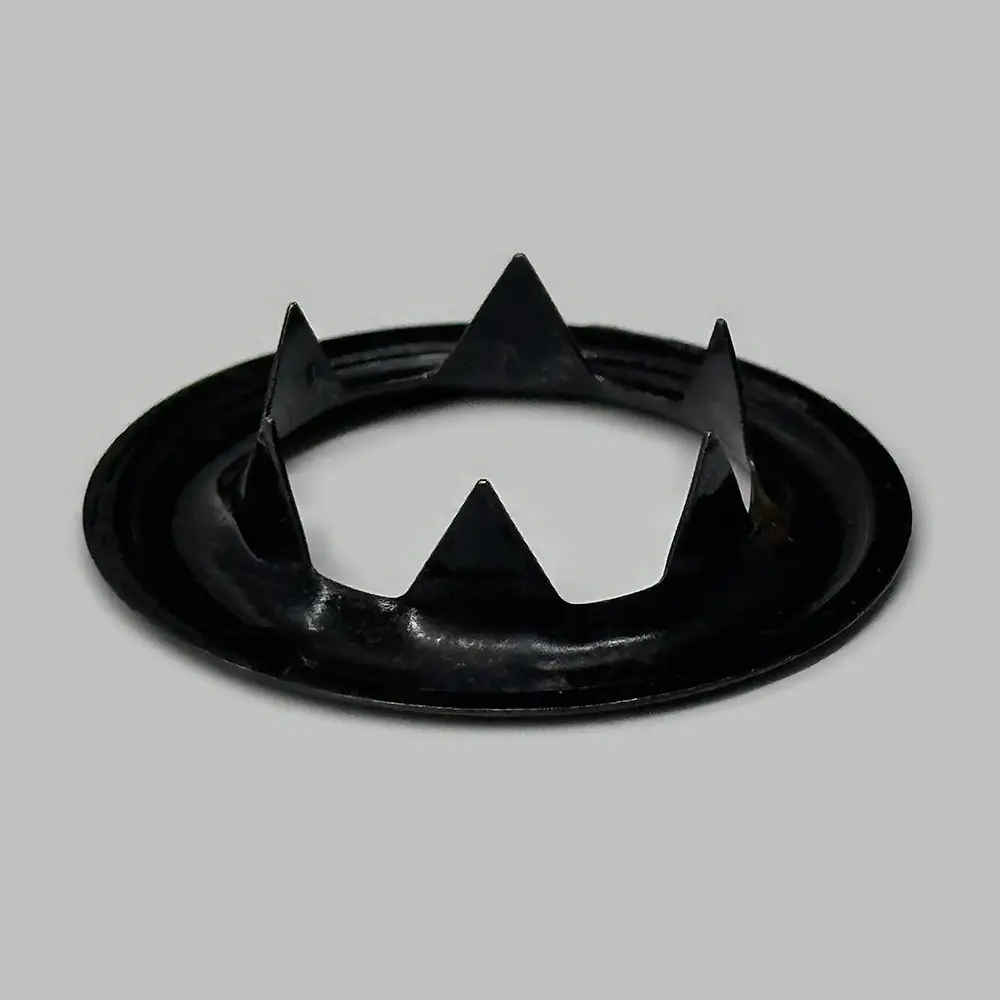

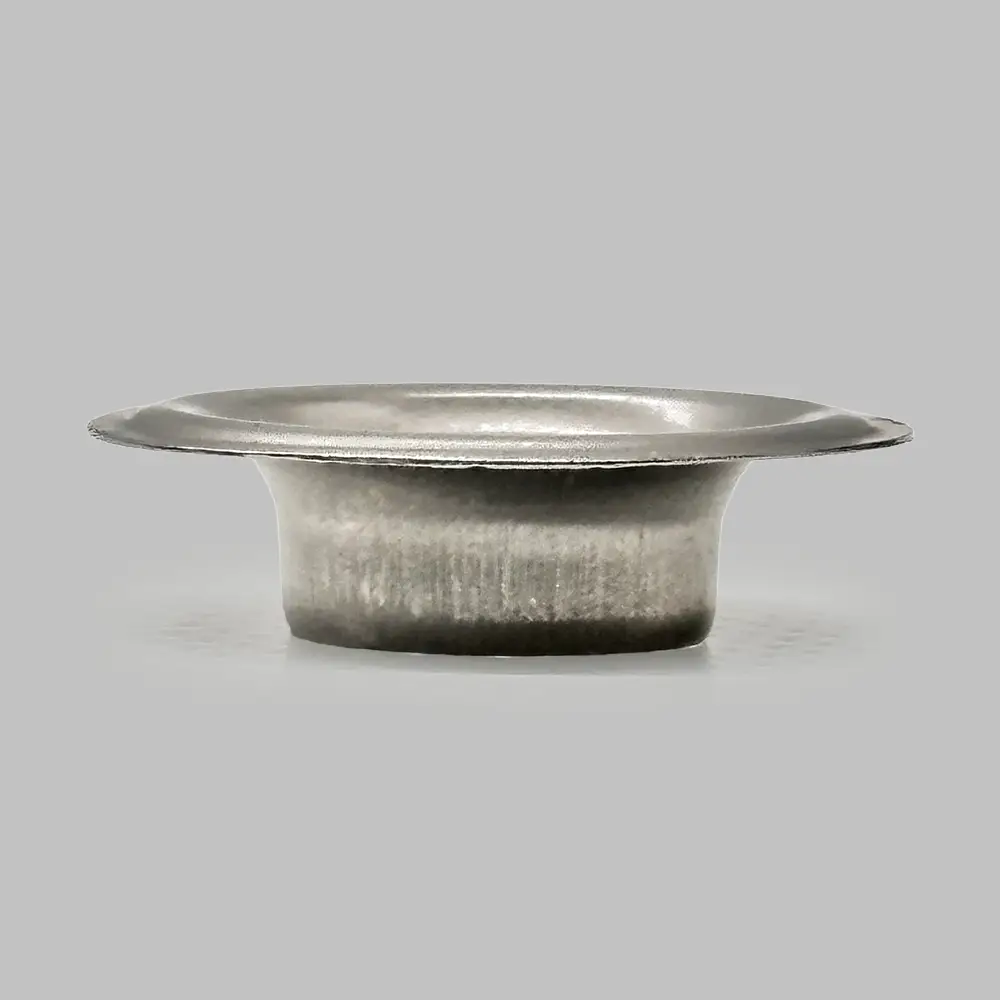

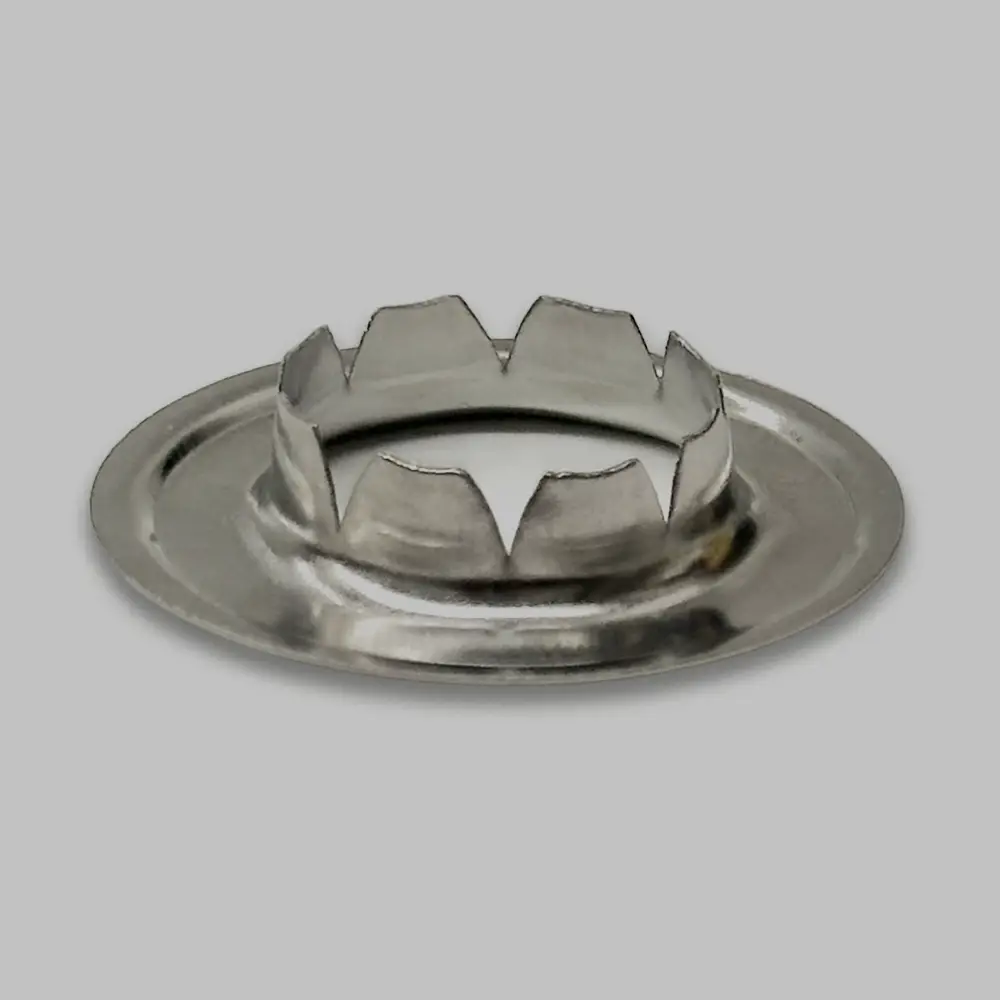

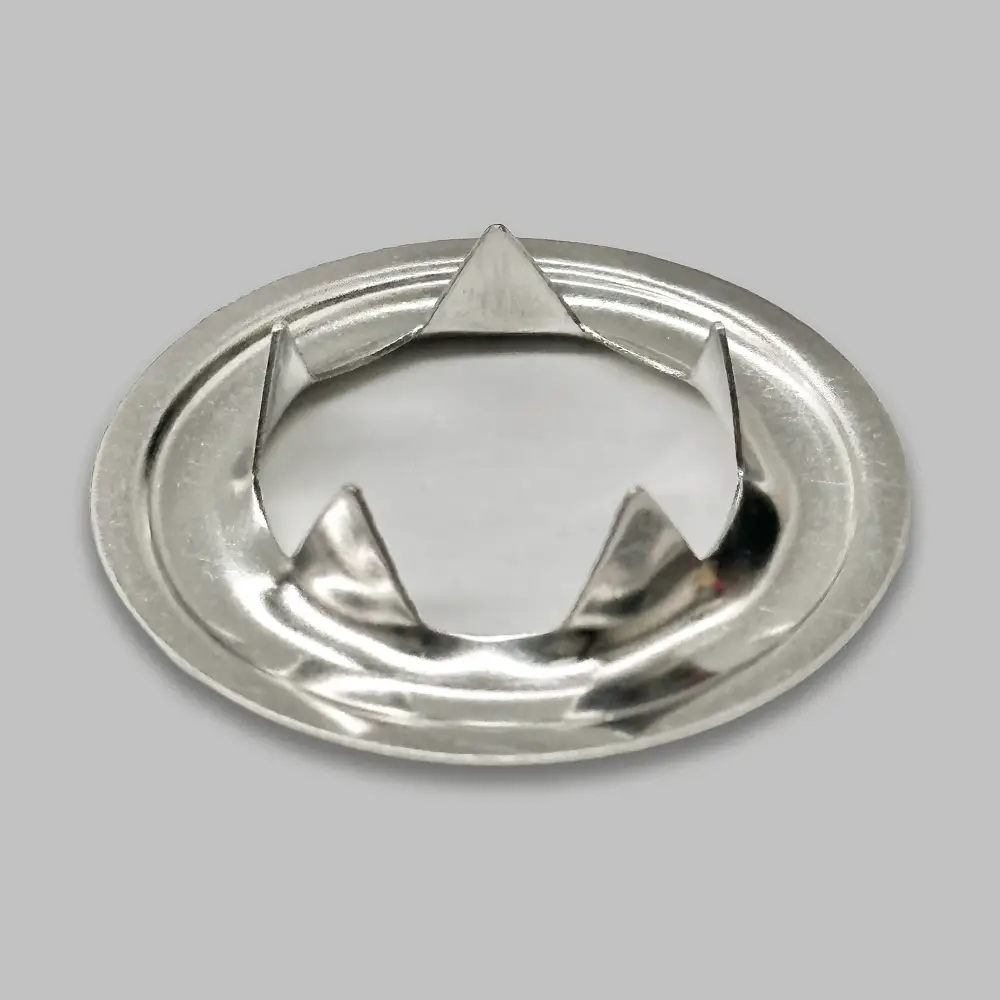

CARR is a grommet specialist offering a reliable range of 304 grade stainless steel and brass grommets, which can be supplied with either tooth or neck washers to meet your fastening requirements.
Metal grommet finishes available to meet your fastening requirements include:

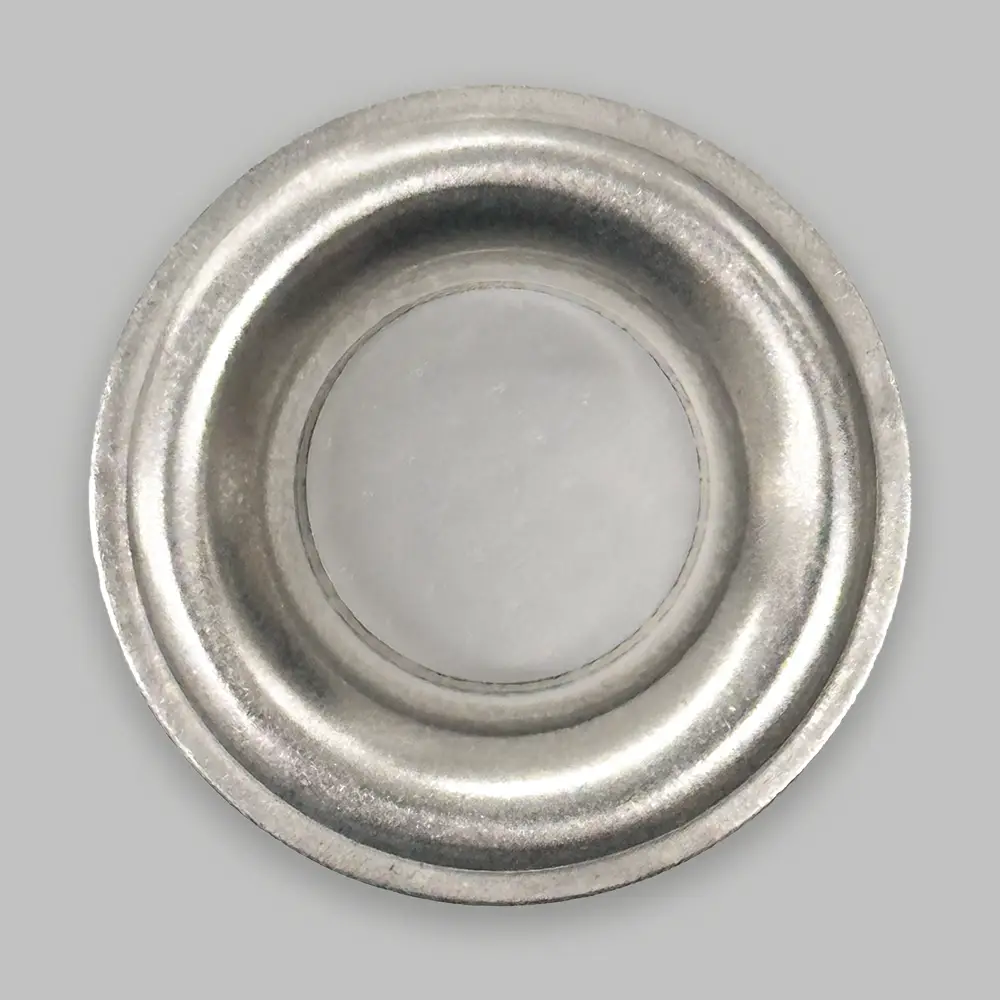

- 304 Grade Stainless Steel
- Common Brass

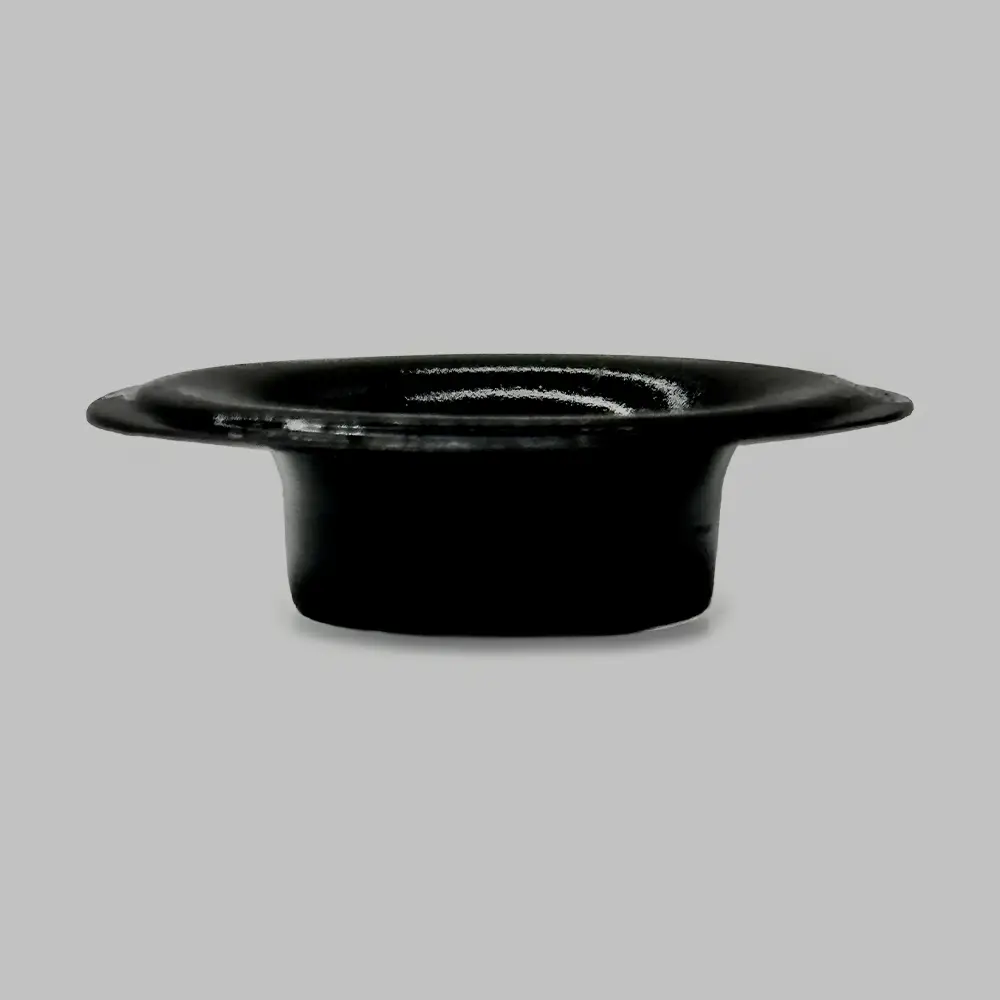

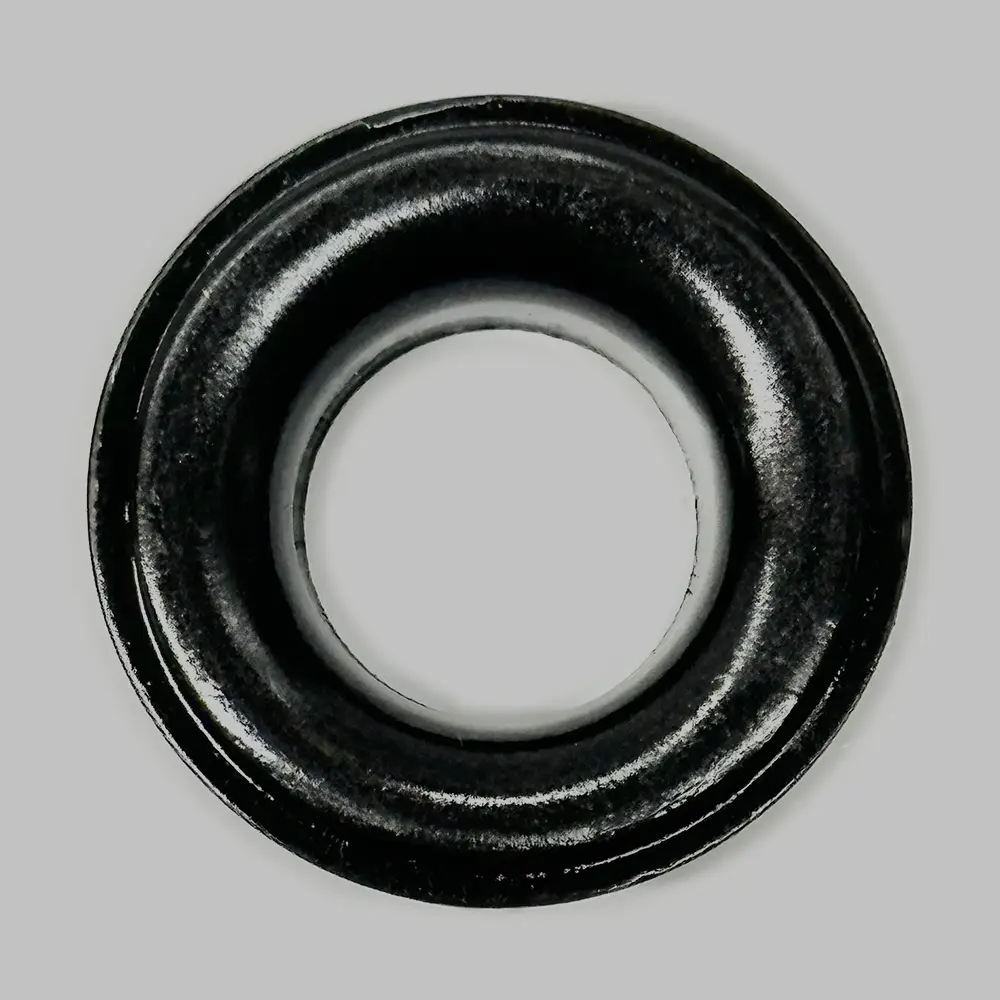

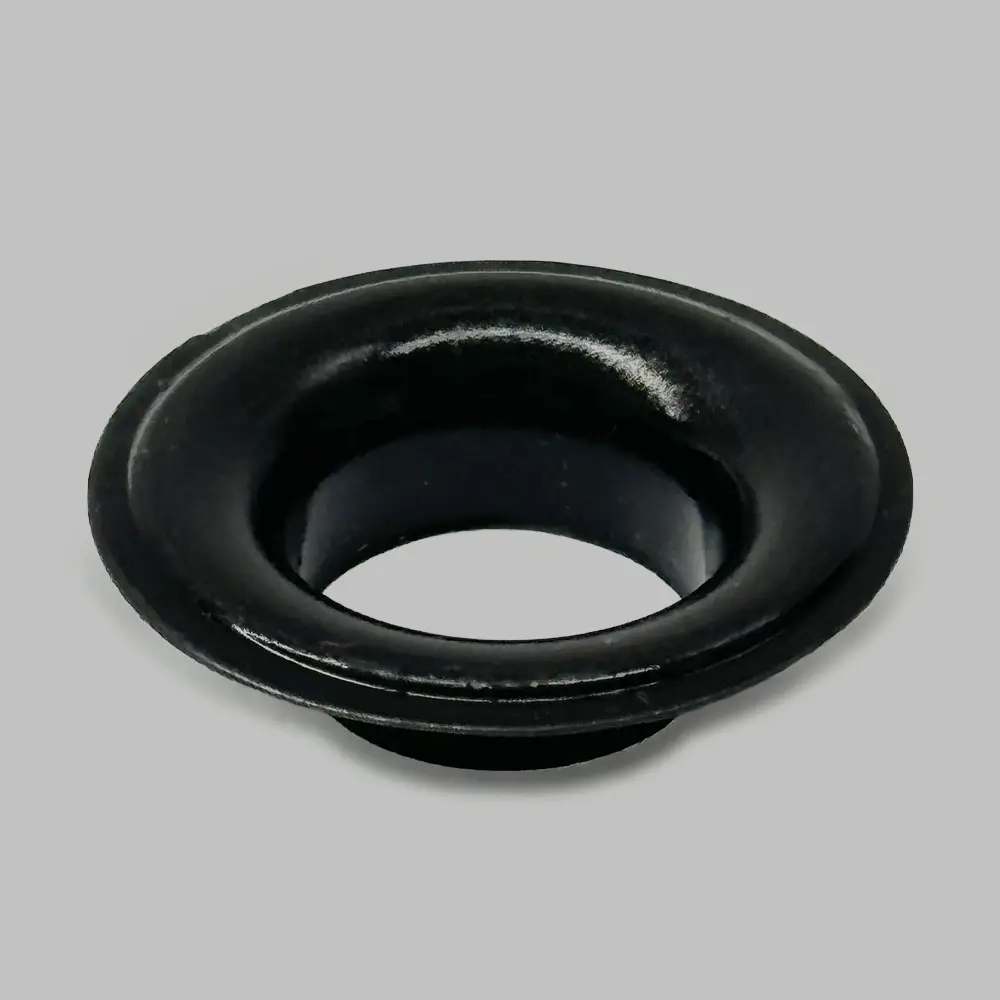

- Black Oxide Coated Brass
Minimum order quantity = 1,000 sets.
Terminology
Measurements
Click to enlarge…
| Eyelet Metal Thickness | Inside Diameter | Length Under Flange | Flange Diameter | Flange Height | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||||||
| Part No. | Part Code | Material | (mm) | (Inches) | (mm) | (Inches) | (mm) | (Inches) | (mm) | (Inches) | (mm) | (Inches) |
| #2 | G2SS | 304 Stainless Steel | .30 | 0.01 | 9.60 | 0.38 | 5.00 | 0.20 | 20.55 | 0.81 | 0.90 | 0.04 |
| #3 | G3SS | 304 Stainless Steel | .30 | 0.01 | 11.50 | 0.45 | 7.35 | 0.29 | 24.60 | 0.97 | 0.90 | 0.04 |
| #4 | G4SS | 304 Stainless Steel | .30 | 0.01 | 13.10 | 0.52 | 8.50 | 0.33 | 26.50 | 1.04 | 1.05 | 0.04 |
| #5 | G5SS | 304 Stainless Steel | .30 | 0.01 | 15.60 | 0.61 | 7.30 | 0.29 | 30.70 | 1.21 | 1.00 | 0.04 |
| #1 | G1BR | Brass | .30 | 0.01 | 7.40 | 0.29 | 4.60 | 0.18 | 17.60 | 0.69 | 0.90 | 0.04 |
| #2 | G2BR | Brass | .30 | 0.01 | 9.60 | 0.38 | 5.00 | 0.20 | 20.55 | 0.81 | 0.90 | 0.04 |
| #3 | G3BR | Brass | .30 | 0.01 | 11.50 | 0.45 | 7.35 | 0.29 | 24.60 | 0.97 | 0.90 | 0.04 |
| #4 | G4BR | Brass | .30 | 0.01 | 13.10 | 0.52 | 8.50 | 0.34 | 26.50 | 1.04 | 1.05 | 0.04 |
| #5 | G5BR | Brass | .30 | 0.01 | 15.60 | 0.61 | 7.30 | 0.29 | 30.70 | 1.21 | 1.00 | 0.04 |
| #2 | G2BL | Black Oxide Coated Brass | .30 | 0.01 | 9.60 | 0.38 | 5.00 | 0.20 | 20.55 | 0.81 | 0.90 | 0.04 |
| #3 | G3BL | Black Oxide Coated Brass | .30 | 0.01 | 11.50 | 0.45 | 7.35 | 0.29 | 24.60 | 0.97 | 0.90 | 0.04 |
| #4 | G4BL | Black Oxide Coated Brass | .30 | 0.01 | 13.10 | 0.52 | 8.50 | 0.34 | 26.50 | 1.04 | 1.05 | 0.04 |
| #5 | G5BL | Black Oxide Coated Brass | .30 | 0.01 | 15.60 | 0.61 | 7.30 | 0.29 | 30.70 | 1.21 | 1.00 | 0.04 |
| Washer Metal Thickness | Flange Height | Flange Diameter | Inside Diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | E | F | ||||||||
| Part No. | Part Code | Material | (mm) | (Inches) | (mm) | (Inches) | (mm) | (Inches) | (mm) | (Inches) |
| #2 | G2SS | 304 Stainless Steel | 0.30 | 0.01 | 0.90 | 0.04 | 20.55 | 0.81 | 11.55 | 0.46 |
| #3 | G3SS | 304 Stainless Steel | 0.30 | 0.01 | 0.90 | 0.04 | 23.80 | 0.94 | 13.90 | 0.55 |
| #4 | G4SS | 304 Stainless Steel | 0.30 | 0.01 | 1.00 | 0.04 | 26.55 | 1.05 | 15.10 | 0.59 |
| #5 | G5SS | 304 Stainless Steel | 0.30 | 0.01 | 1.00 | 0.04 | 30.75 | 1.21 | 18.40 | 0.72 |
| #1 | G1BR | Brass | 0.30 | 0.01 | 0.85 | 0.03 | 17.50 | 0.69 | 8.90 | 0.35 |
| #2 | G2BR | Brass | 0.30 | 0.01 | 0.90 | 0.04 | 20.55 | 0.81 | 11.55 | 0.45 |
| #3 | G3BR | Brass | 0.30 | 0.01 | 0.90 | 0.04 | 23.80 | 0.94 | 13.99 | 0.55 |
| #4 | G4BR | Brass | 0.30 | 0.01 | 1.00 | 0.04 | 26.55 | 1.05 | 15.10 | 0.59 |
| #5 | G5BR | Brass | 0.30 | 0.01 | 1.00 | 0.04 | 30.75 | 1.21 | 18.40 | 0.72 |
| #2 | G2BL | Black Oxide Coated Brass | 0.30 | 0.01 | 0.90 | 0.04 | 20.55 | 0.81 | 11.55 | 0.45 |
| #3 | G3BL | Black Oxide Coated Brass | 0.30 | 0.01 | 0.90 | 0.04 | 23.80 | 0.94 | 13.90 | 0.55 |
| #4 | G4BL | Black Oxide Coated Brass | 0.30 | 0.01 | 1.00 | 0.04 | 26.55 | 1.05 | 15.10 | 0.59 |
| #5 | G5BL | Black Oxide Coated Brass | 0.30 | 0.01 | 1.00 | 0.04 | 30.75 | 1.21 | 18.40 | 0.72 |
| Washer Metal Thickness | Flange Height | Flange Diameter | Inside Diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | E | F | ||||||||
| Part No. | Part Code | Material | (mm) | (Inches) | (mm) | (Inches) | (mm) | (Inches) | (mm) | (Inches) |
| #2 | G2SS | 304 Stainless Steel | 0.30 | 0.01 | 0.90 | 0.04 | 20.55 | 0.81 | 11.00 | 0.43 |
| #4 | G4SS | 304 Stainless Steel | 0.30 | 0.01 | 1.00 | 0.04 | 26.55 | 1.05 | 14.10 | 0.56 |
Measurements Last Updated: 28 November, 2025
